All-In-One Auto Urinal Flusher & Top Button


A$ 286.00
A$ 226.60
Inc. GST
A$ 260.00
A$ 206.00
Ex. GST
You save A$ 59.40
(No reviews yet) Write a Review
SKU:
CAT 67106-1
Condition:
New
Availability:
Same Day Dispatch (order before 12:00pm AEST)
Shipping:
Calculated at Checkout

Options

A$ 286.00
A$ 226.60
Inc. GST
A$ 260.00
A$ 206.00
Ex. GST
You save A$ 59.40

Description

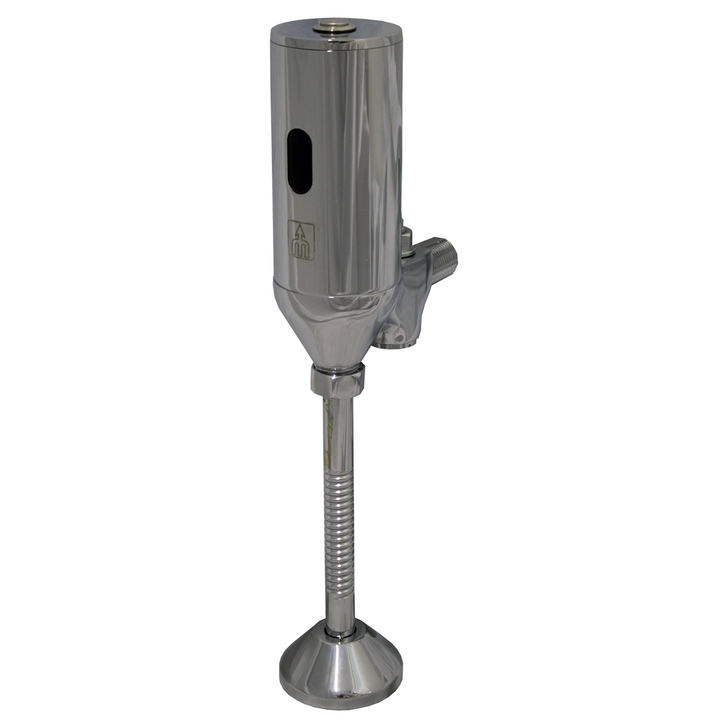

Auto Urinal Flusher - All-in-one (Auto infrared & Top Button activation)




Features
Touch free and fully automatic microcomputer urinal valve with manual push button if needed
No electrical wiring required - all in one
Everything is incorporated within the unit & accessed via the top cap
Takes 4x AA batteries lasting approx. 4 years or 90,000 starts (batteries not included)
Auto activates when movement is detected - 10 to 65cm adjustable sensing range
Adjustable flow rate which is set on installation
Shuts off automatically and instantly

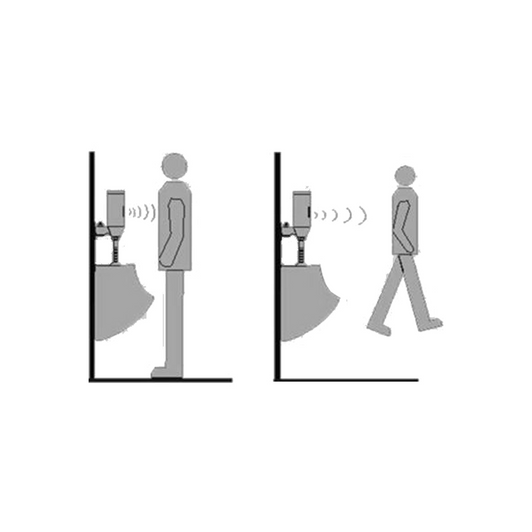

2 Stages (2s activated on entry and 6s on departure)
Suitable for top inlet urinal

Specifications
Working pressure: 0.07 to 0.7Mpa
Standard 1/2" connections

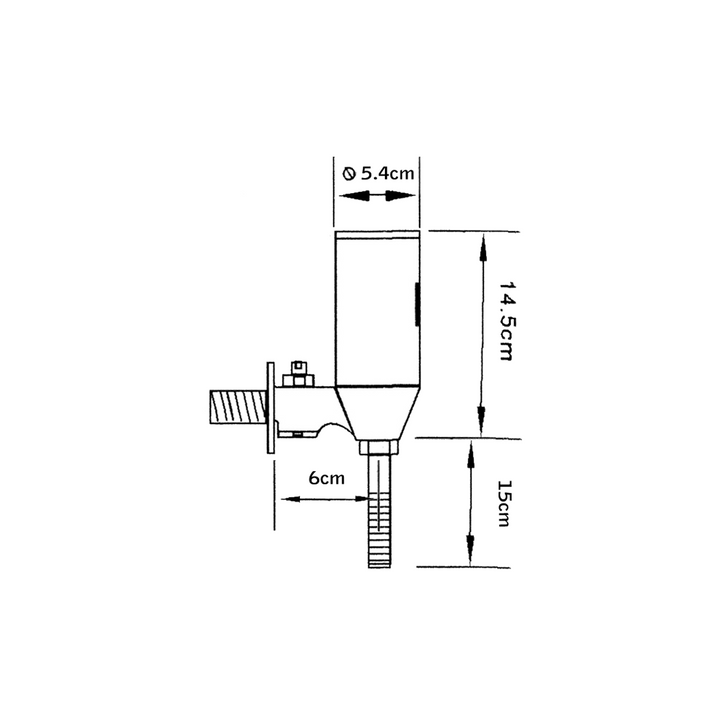

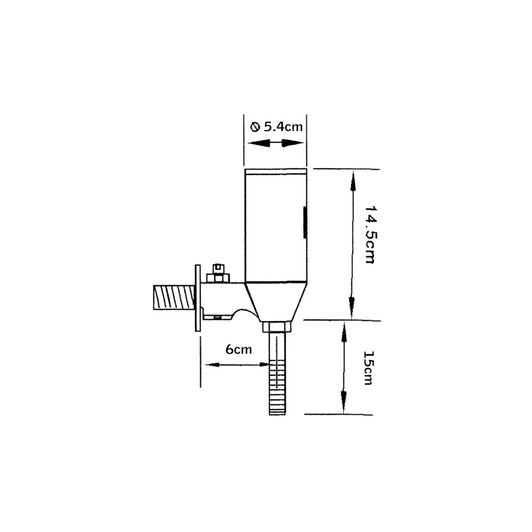

Dimensions - 155 x 120 x 54mm
Boxed unit - 320 x 200 x 70mm
Weight 1.2kg

Optional Extras
Remote to reprogram flush cycle and sensing range



Downloads

Operating Manual










Installation Disclaimer:
This product must be installed in accordance with relevant Australian standards and requires a Vacuum Breaker on the outlet (not supplied). This product is not currently WaterMarked.
