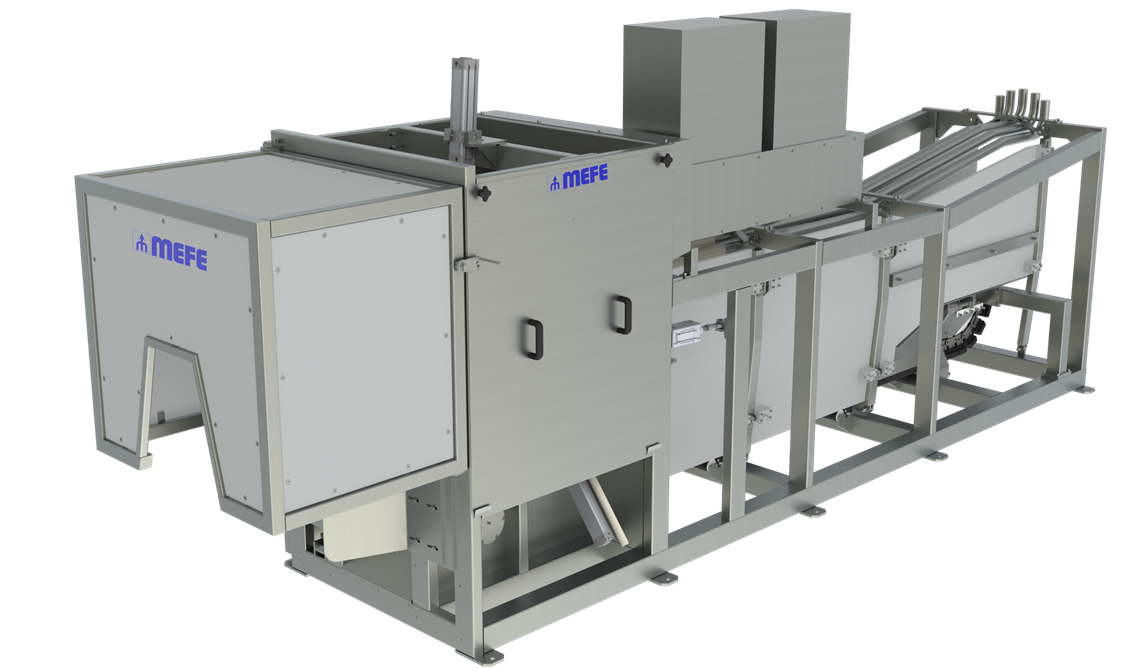

Pig Automatic Stun Conveyor
Animal welfare accuracy and efficiency, Fully automatic feed stun conveyor
Accurate synchronization between conveyor and stunning equipment through servo drives and linear guiding systems Drive unit at the end of the conveying system – thus avoiding injuries and reduced wear on the conveyor components.
The specially designed conveyor supports the belly of the pig, and the pig's feet are suspended in the air to avoid damage.
Main features: accurate positioning of the stunning electrodes; Head and heart current and high frequency control;
Apply a stunning current to the head and chest;
The proportion of PSE meat has been effectively reduced.
Application:Automatic pig stunning
Power mode:Pneumatic and electric
Installation method:Fixed on concrete foundation
Design for minimal “db“ noice levels ensures calm and stress free stun Stunning current is recorded with a digital data system, Light grids and sensors are used for optimal animal identification
Equipment constructed in stainless steel and Galvanised Frame
Full integrated automatic Freund Stun control – internet based and fully recordable.
max. slaughter weight: 350 kg
min. slaughter weight: 50 kg
- hygienic frame construction of sheet metal and profile parts, stainless steel 1.4301
- jump-on tubes made of stainless steel 1.4301
- low-maintenance and easily accessible tensioning system for bush conveyor chain
- animal-friendly inlet geometry
components
- Robust and easily accessible drive construction
- automated stunning module with head and heart electrodes
Stunn
- hygienic frame construction made of sheet metal and profile parts, stainless steel 1.4301
- innovative animal body detection for best heart-brain stunning
- Head and heart electrodes can be individually controlled
- Stunning transformers included as optional extras - Freund E6 or F series
- Robust guidance of the traversing carriage
- completely insulated
Drive Feed Conveyor
Rubber blocks supporting abdomen
Polymer nylon side plates
Three point stun Electrodes, Head and heart Stun
Driving & Tension device
Photoelectric switches
PLC control system
Technical parameters:
Capacity:300 head per hour
Power:2.2kw
Out Size:6000*1100*1750mm
