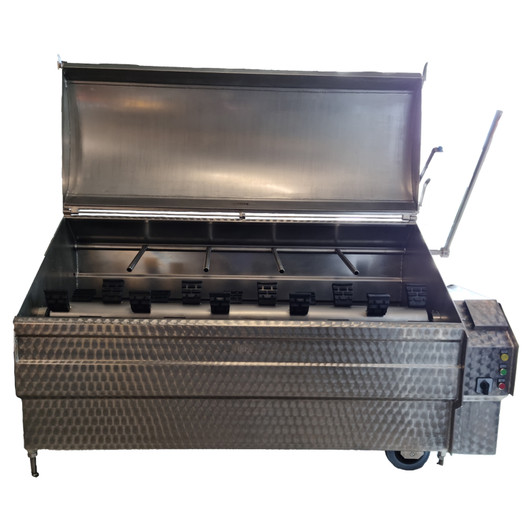

Pass Through Dehairing and Sclading Machine
Pass Through Dehairing and scalding machine with rear eject model SK20 is designed for pigs up to 250kg or the option is available to increase the length to accommodate pigs up to 330kg. This model provides the complete solution to the medium sized abattoir and is capable of scalding, dehairing and cleaning 20 pigs / hour entry from rear, exit to front (pass through)
Features:
2 Roller systems for thorough dehairing
Head scrubing holder for difficult to reach head area
Mobile on 4 castors
New-Design reinforced gearing
Special scraper paddles (on rear panel aswell)
Electric heater in oil bath
Integrated control and operating unit in machine housing
Swing out rollers for cleaning the machine
3/4" water connection
Options:
Galvanised or Stainless Steel throughout
Choice of internal lengths
Bristle Screw
Integrated brisle collector for catching the bristles in the machine
Compressed air ejector
Compressed air lid (choice of lid types)
Electric wall control unit in stainless steel casing
Specifications:
Inside length: 1.9m / 2.2m / 2.5m
Height/width: 1m tall x 2.5m long / 2.8m long
Weight: 570kg
Motor: Choice from 13.5kW to 24kW
Drive Unit: 2.2kW 380/400V 50Hz 3-phase (custom voltages also available)
Heating: Steam, gas or oil
Scraping paddles: 78 units in machine with 1.9m internal length
Production approx: 15-20 pigs/hour
Max Pigs 350kg
Versions with integrated Brisle Screw:
The bristle screw discards bristles and dirt out of the machine throughout the scalding/dehairing process.
The resulting consistantly high water quality ensures making a higher slaughter capacity per water filling.
Choice of lid types:
Sliding/folding lid
Folding lid (complete lid)
Custom height lid (for larger pigs)
Automatically operated lid opener:
After inserting the pigs, the lid closes at the touch of a button and the scalding and dehairing process starts, when the machine stops automatically after the sest time has elapsed (approx 3 minutes) the lid opens, and the pig is ejected by pressing a button.
Extras upgrades and addon options:
Alternative heating via gas burner and Stainless Steel coil running running off 240V thermostatic control or supplied steam heating
Hair collection box and automatic hair removal screw
Heating with gas or steam
Complete production can be automated with pneumatic lid operation
Stainless steel feet and coils
Automatic hair removal screw
Pneumatic Auto eject
Spare Parts:
Pig Scraper Rubber Blocks
