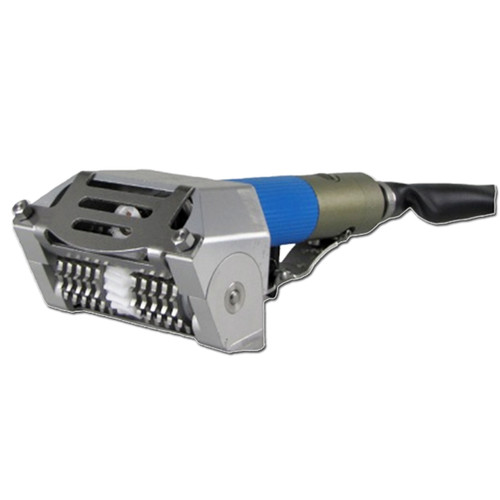

Pneumatic Handheld Skinner
Used for de-skinning pork and pork joints e.g. ham or shoulder, or defatting of beef and lamb.
Our customers have asked us to develop a skinner that offers the operator limited downtime, more power and reduces overheard running costs.
Versatility is the key with this skinner. They are ideally suited to removing hog hair roots, skin patches, trimming strips, rounds, butts, hindquarters, bone in and boneless pork loins, cattle-pack ribs, lamb, knuckles and touch-up work. Well suited to fresh and cured ham trimming and de-fatting, de-skinning fish, and chicken skin removal as well as cold beef and lamb de-fatting, and improve the overall product appearance with ease.
Toll-free Rapid Blade Changing System
The skinner has a patented quick blade change system to replace the blade within a few seconds - no tools needed. This safe and quick handling leads to lower downtime of the tool and a permanent sharp blade. The HSK8-P3 head has been developed, engineered and manufactured in Germany and has been designed without any loose parts which could drop into the meat while changing the blade. Different blade depths are available. The head had been engineered for heavy hand operators and is stronger than ever before.
Easy Maintenance
Wearing parts of the skinner can be replaced quickly with an ordinary slot-screwdriver. The lowering of running costs has been a major focus when developing this tool, so only the defective parts needs replacing. All parts are individually replaceable and available from FREUND particularly the roller pinion that is separate. No more complete rollers to replace, savings $1000's on maintenance.
Optimal Hygiene and Wash-down
The intelligent Stainless Steel design provides easy and optimal wash-down by consequently avoiding dead-spots in the body of the tool where dust can collect. Therefore, the highest hygiene standards in the cutting room can be fulfilled with the HSK8-P3.
Individually Adjustable Ergonomics
The working ergonomics are perfect because of an optimal weight balancing and an easy to adjust handle position. It is possible to adjust quickly from right to left handed operation.
Strong Air-Motor P3 Made in Germany
Freund’s new air motor P3 is also completely manufactured in Germany and the 320W power gives the skinner massive traction. The motor is made to last. It is even possible to let it run without oil from a FRL unit without damaging parts inside. With oil the motor reaches maximum performance. With all that the P3 is perfectly equipped for the environment in Slaughter and Cutting Rooms.
Specifications:
Weight 2.3 kg
Length 260 mm
Width 110 mm
Height 75 mm
Blade Width 80 mm
Cutting depth 3.5 mm
Airflow 420 l/min
Input pressure 6 Bar / 90 psi
Power output 320 Watt / 0.435 hp
Spare parts available:
Blade Pack
Pneumatic connection kit
